Air Cooled Chiller
Benifits
▶ No cooling towers
▶ Betterenvironmentalstability-nowaterwastage
▶ Low maintenance costs
▶ Easier to operateand control-tower freezing and tower by pass absent
▶ Chemical costs avoided
▶ Water costs avoided,especially in cities
▶ No water problems to deal with in case of disaster
How It Air Cooled Chiller Function
Safety and Operating controls
▶ Under Voltage / Over Voltage.
▶ Chilled Water Flow Failure Trip.
▶ Digital Temperature Controller.
▶ Simple Electronic Temperature Control.
▶ Suction Pressure Operating Control.
▶ Discharge Pressure Control For Condenser Fans.
▶ Contactors , MotorStarters , And OverLoads.
▶ Single Phasing Preventer / Reverse Phasing Preventer.
▶ Hig And Low Refrigerant Pressure Cutout Set With Display.
General Specification
▶ User Friendly Design.
▶ Vertical and Horizontal Mounting Condensers design.
▶ Coaxial Copper Coilor Brazed plate heate xchangers with SS316 plates for Evaporator.
▶ System designing @45C Ambient Temperature Condition.
▶ Equipped with Refrigerant Gas Pressure Guages (LP & HP Gauges).
▶ Dry running protection of Pump by water level sensor in the tank.
▶ Crank case heater to prevent liquid migration of refrigerant in Compressor.
▶ Proven Component Supplier.
▶ Fault indication with Audible Alarm.
▶ Sight Glass with moisture indicator.
▶ Filter dryer to ensure moisture free system.
▶ Stainless steel PUF or nitrile foam insulated tank to prevent heat loss.
▶ High volume, high presser pump with stainless steel impeller.
▶ Dry run protection of pump by water level sensor in the tank.
▶ Water re filling valve to maintain level in the tank automatically.
▶ Tool free access panel and systematic organized internal components.
▶ Isolated switch cabinet with all necessary switches and power controls.
▶ High performance, low maintenance system with switching cycle controls.
▶ Indicator lights for faults like pump status, compressor and temperature.
▶ All chilled water contact surfaces are non-ferrous for protection against corrosion.
▶ For Reliability & Safety All electrical switchgears are using
Schneider, Siemens, Any other brand of International repute.

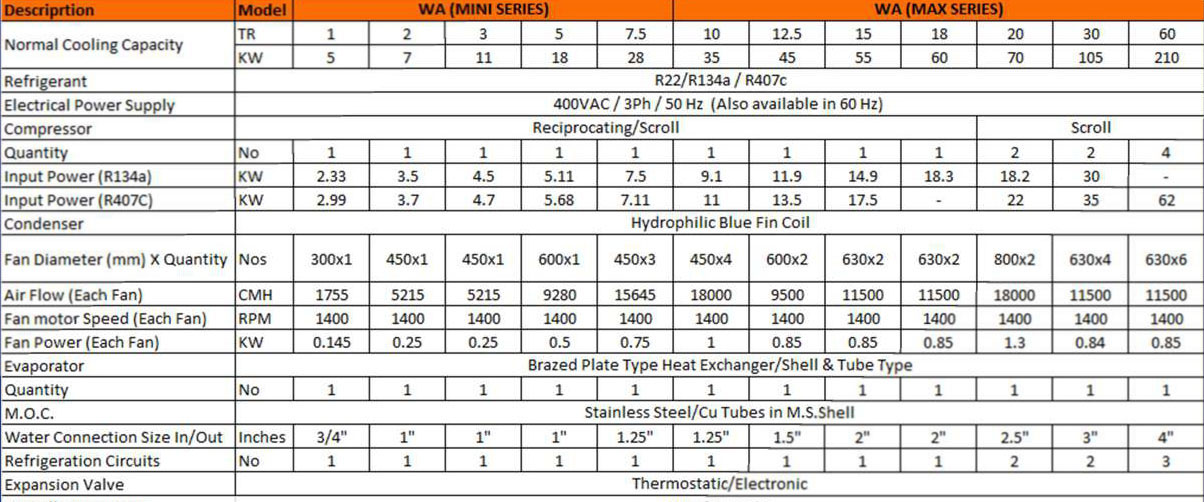

Air Cooled Technical Specification
Water Cooled Chillers
Benifits
▶ Energy Efficiency
▶ Space Saving
▶ Noise Reduction
▶ Longer Equipment Life
▶ Scalability
▶ Environmental Benefits
▶ Higher Efficiency at High Loads
▶ Flexibility in Design
How It Water Cooled Chiller Function
Safety and Operating controls
▶ High And Low Refrigerant Pressure Cutout Set With Display.
▶ Cooling Tower Pump Controls enable in the system.
▶ Simple Electronic Temperature Control.
▶ Chilled Water Flow Failure Trip.
▶ Digital Temperature Controller.
▶ Under Voltage/Over Voltage.
▶ Single Phasing Preventer/Reverse Phasing Preventer.
▶ Suction Pressure Operating Control.

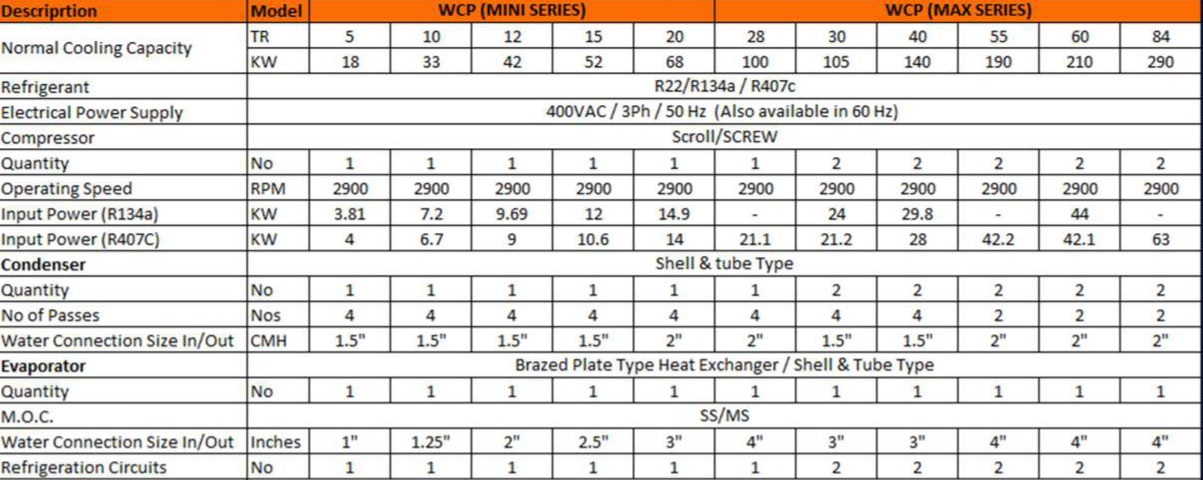

Water Cooled Technical Specification
Online Chiller
Our company has been manufacturing water Chillers (Online Type) especially for packaged drinking water, RO water industry, Soda Industry for a decade.
Features
▶ Completely online, hence no chance of water defile.
▶ Efficient distillation & water saving due to complete integration into the rotary evaporation system.
▶ Saves time due to instant start with automatic and dynamic pressure adjustment without waiting until Chiller reaches its set temperature.
▶ Seamless Integration with convenient temperature setting and control.
▶ ECO-mode interface saves energy and reduces heat emission by switching into a stand-by mode when not in use.
▶ Temperature lock facility to avoid unintentional changes.
▶ Optimal cooling with automatic adjustment to heating and cooling temperature.
▶ Efficient navigation by convenient setting of cooling temperature directly on the Chiller or on the central Inter face.
▶ Available from I tonne to 50 ton capacity .
Glycol Brine Chiller
Air Condensed Chillers for refrigeration applica- tion with glycol water or Brine, low noise opera- tion and compact construction in a galvanized steel shell with polyester coating for outdoor in- stallation.
Features
▶ 400V-III-50Hz power supply.
▶ R-404A refrigerant.
▶ Hermetic reciprocating or scroll compressors, with noise insulation, with rotalock service valves, discharge muffler (for reciprocating compressor models), mounted on shock absorbers, with internal klaxon,
anti-back-flow valves and crankcase heater.
▶ Large area U-shaped condensing coil, in copper pipes and aluminium fins, tropicalised for ambient temperatur up to 45 °C.
▶ Low-speed electronic axial motor-fans (except for series 1) with low energy consumption, avec internal protection, mounted on nozzles, dynamically balanced blades and external protection grille.
▶ Proportional control of condensing pressure.
▶ Brazzed plates heat exchanger featuring inox plates with copper welding, with anti-freezing heater.
▶ Refrigeration circuit with one or two suction line/s, built-in copper piping with high and low-pressure switches pressure transducers, service valves, thermostatic expansion valve, dehydration ceramic filter and sight glass.
▶ Hydraulic circuit built-in copper piping with flow switch, temperature and pressure gauge, air vent and draining valve. thread connection up to 2 1/2" and DN80 bridle connection from 3".
▶ Full control and power panel, with thermal and magnetothermal protection for compressor/s, fan/s and water pump.
▶ Electronic regulation with 4 power stages and glycol inlet temperature setpoint, HP and LP transducers, anti-freezing protection and digital control keyboard.
Oil Chiller
We offer high quality Hydraulic Oil Chiller that is integrated with re- frigeration components including the compressor, condenser, evapo- rator, refrigeration pipes, oil pump and electric panel. The Hydraulic Oil Chiller offered by us maintains the oil temperature to precise tem- perature levels and thereby maintains uniform physical and chemi- cal properties of the oil in operation.
Features
▶ Environmentally-friendly refrigerant R407C used in all units.
▶ Durability & stability achieved.
▶ Applying 3 Phase Rotary Compressor to overall models.
▶ High accuracy control achieved (+/-0.5 Deg c), on/off control.
▶ LCD Digital Controller Mounted.
▶ Compact size allowing the installation of integrated machine tool type.
▶ Embodying low-noise system by applying low-noise pump.
▶ Exclusive for oil cooler.
We are supplying the spares for all types of cooling towers , Chillers & Heat Exchangers.
